Extruded Aluminum Heat Pipes, A Two Phase Heat Transfer Device

Extruded Loop Heat Pipe

A Two Phase Heat Transfer Device

A Highly Effective, Thermally Conductive Solution

Extruded Aluminum Heat Pipe Benefits and Advantages

  • Good Temperature Uniformity
  • High Thermal Conductivity
  • Variable Shape
  • Small Volume
  • Light Weight
  • Low Cost

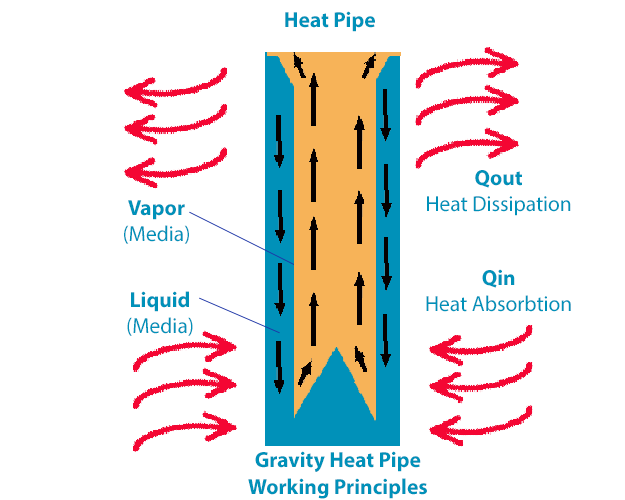

Gravity Heat Pipe Working Principles

Working Principles Of Aluminum Heat Pipes

Heat pipes move heat from the evaporator end (heat source) to the condenser end (heat sink) via the working fluid in the heat pipe.

The cycle first begins at the evaporator end with the heat turning the liquid inside the heat pipe into vapor, which then move towards the condenser end via a pressure differential.

Once the hot vapor reaches the condenser end, the vapor condenses and becomes liquid, which then move back towards the evaporator end via gravity (thus evaporator end must be below the condenser end for aluminum heat pipes to function) .

Aluminium Heat Pipe Thickness 1.5mm.

Filled with high performance refrigerant to enhance heat dissipation.

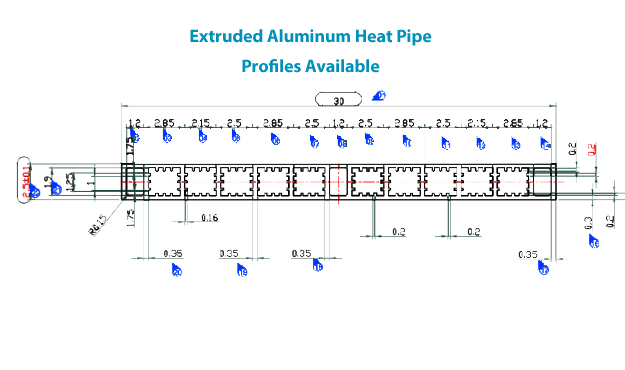

Extruded Aluminum Heat Pipe Examples

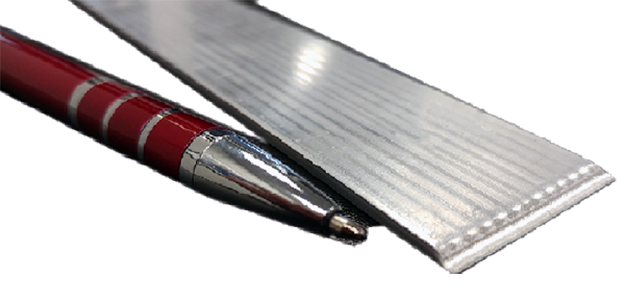

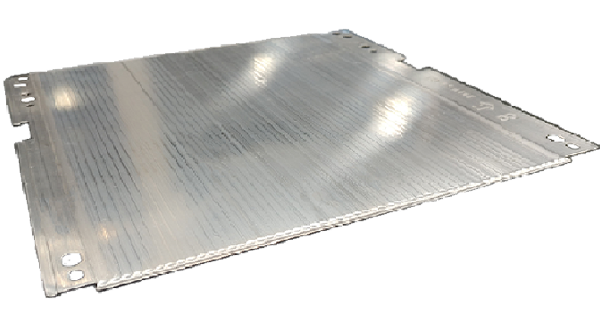

Extruded Aluminum Heat Pipe

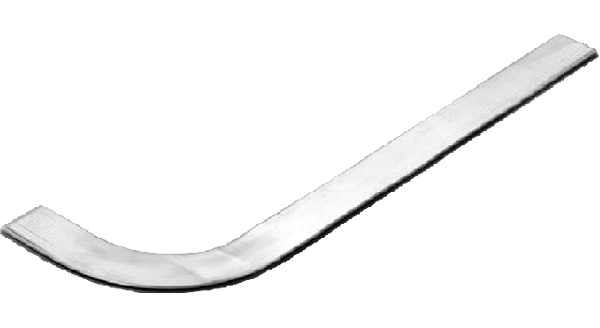

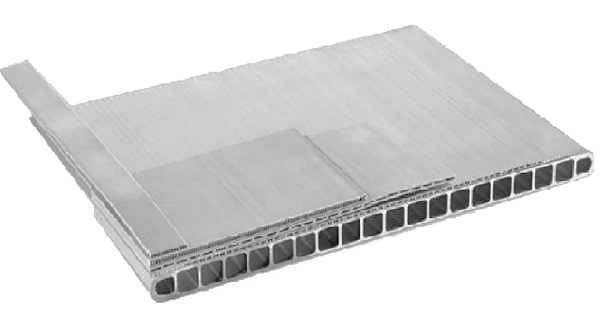

Extruded Aluminum Heat Pipe

BRING US YOUR TOUGHEST THERMAL APPLICATION CHALLENGE

Use Our Design Services or Send Us Your CAD Drawings

Start the conversation with our thermal design solution professionals, by using our thermal design check list, to analyze and solve your thermal challenges. Baknor’s experience and knowledge gained over the years in many different applications enables us to help you find the right innovative cooling solutions for your application.
